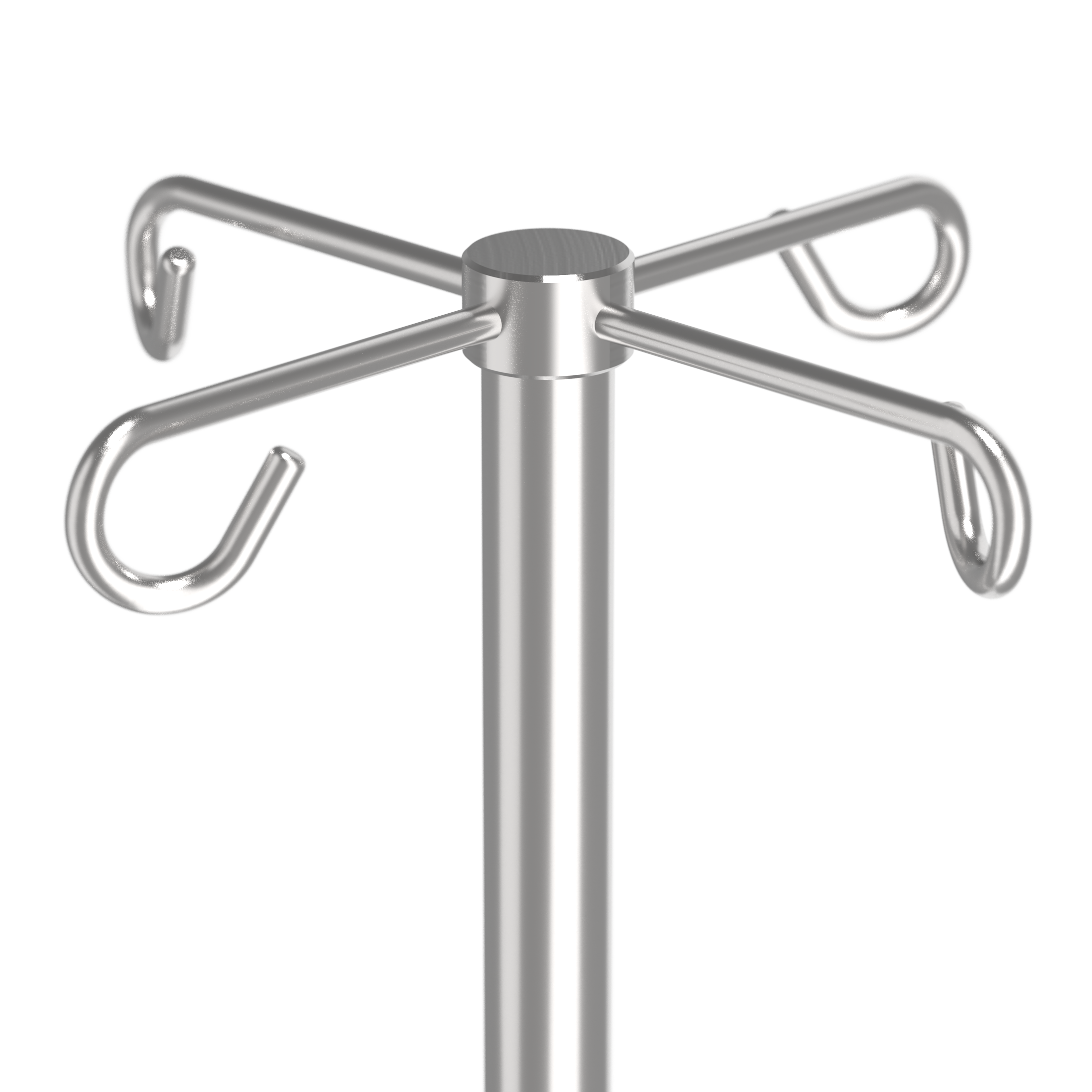

Bottle holder, rotatable
Product highlights
- Effective infusion care by securely hanging infusion bottles and bags
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- Safety bottle cross according to DIN ISO 15375
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
Z2N08632
Bottle holder, rotatable
Material: stainless steelTube diameter | Ø 25 mm |
Bottle Holder | Stainless steel to screw in, bottle holder |
Number of hooks | 4 |
Angled | 2 x 90° |
Parallel shift | 300 mm |
Inclusion for | Round tube Ø 38 |
Tube height | ≈ 380 mm |
Total load capacity (kg) | 8 |
Load capacity per system (kg) | 8 |
Load capacity per hook (kg) | 2 |
Packaging dimensions
Packaging unit: Unit |
Width Box1 | 0,22 m |
Height Box1 | 0,40 m |
Length Box1 | 0,65 m |
Weight Box1 | 1,80 kg |
