Children - IV Pole Rainbow - green
Product highlights
Shipping optimized packaging
up to 50 pieces on one pallet
Set-Up-Time
2 - 3 minutes
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- child-fairly design stimulates the recovery process and provides a friendly atmosphere
- All plastic parts are lightfast
- The integrated pull-out limiter prevents the adjustable tubes from separating
- Safety bottle cross according to DIN ISO 15375
- a sealing cap prevents the IV-pole from hygienical senstive liquids
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
- very easy and fast assembly through a plug in and out system with only 1 screw connection

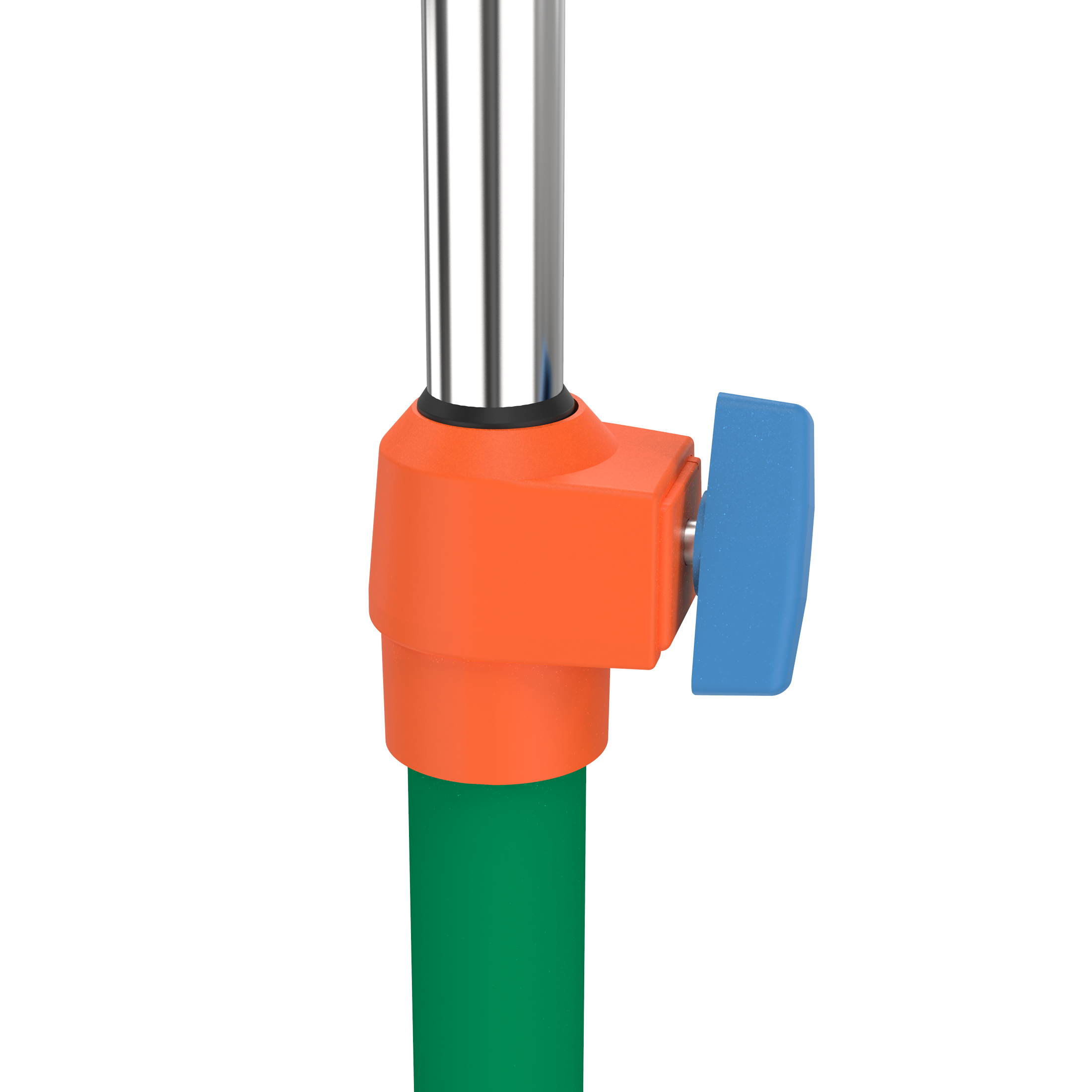

- comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element
I-HA4126
Children - IV Pole Rainbow - green
with mouse castors
| Mounting of medical devices | prohibited |
Field of application
|
Pediatric |
| Material | Aluminium/ Plastic |
| Colour of plastic parts | Green, black, yellow |
|

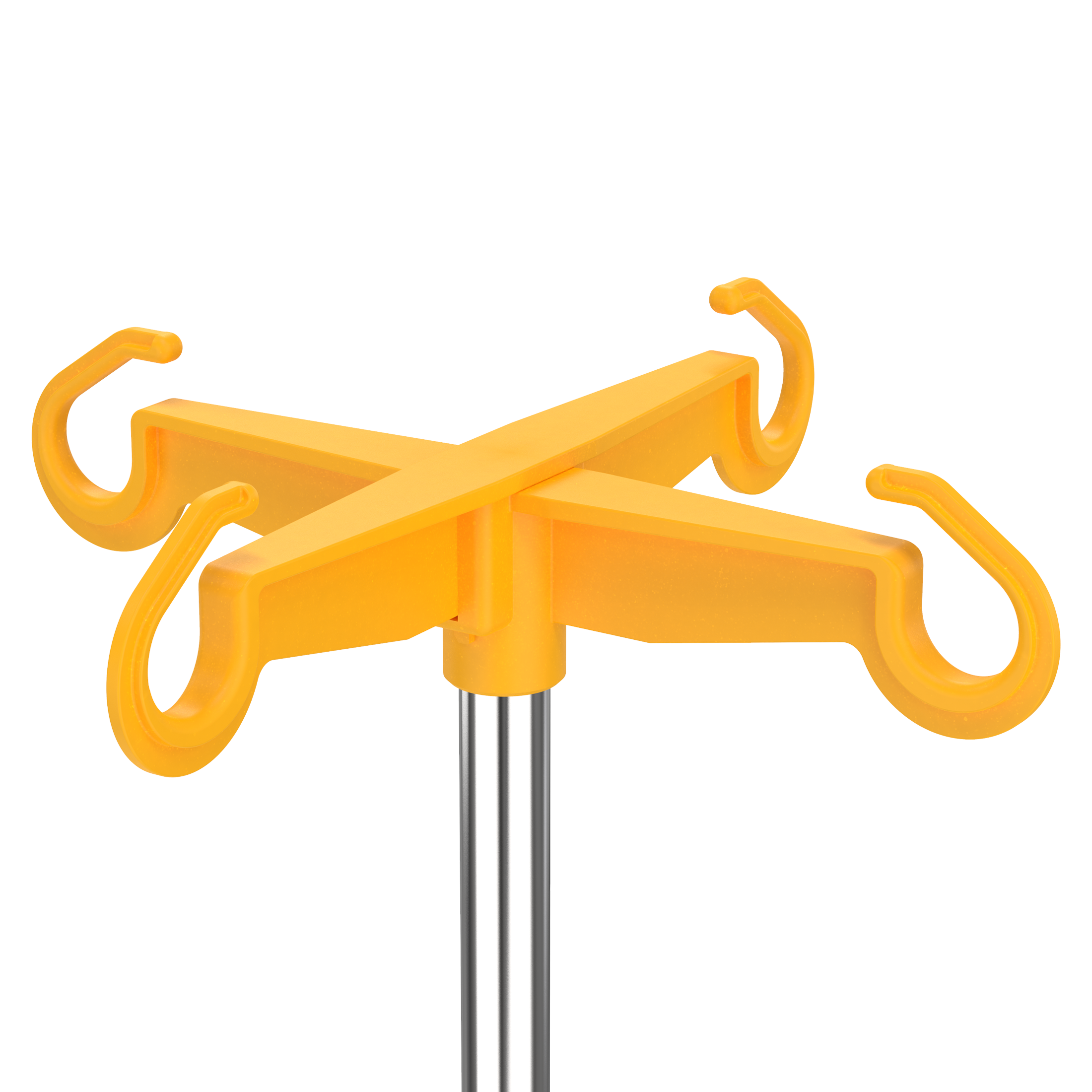

Bottle Holder
|
Plastic |
| Number of hooks | 4 |
| Arrangement of the hooks | 90° to each other |
| Maximum length/height | 2.100 mm |
| Minimum length/height | 1.275 mm |
| Inner tube diameter | Ø 18 mm |
| Outer tube diameter | Ø 25 mm |
| Length of outer tube | 1.000 mm |
| Base diameter | Ø 660 mm |
|

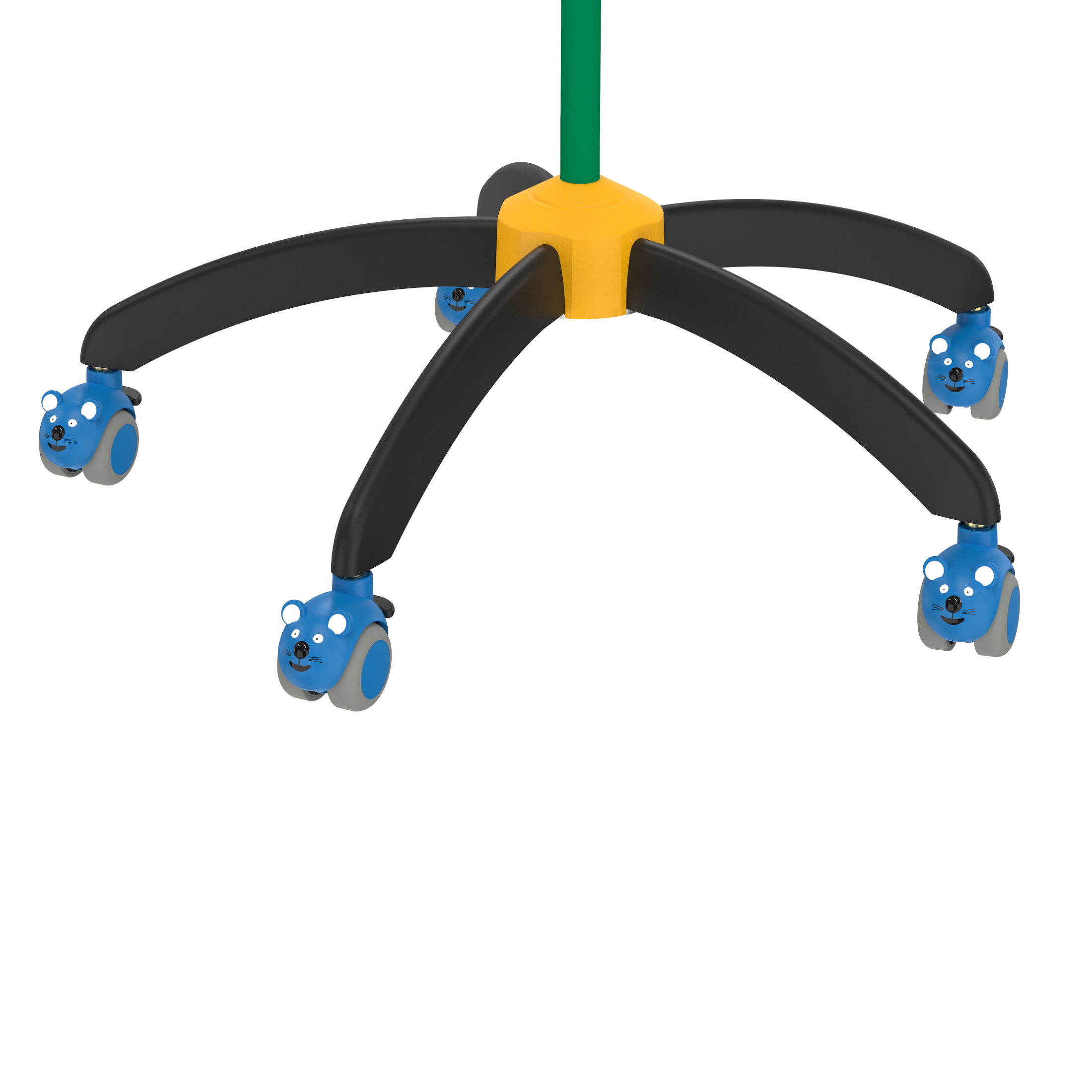

Castors
|
Twin castors - mouse design |
| Castor diameter | Ø 50 mm |
| Number of castors | 5 with brakes, without elect. conductivity |

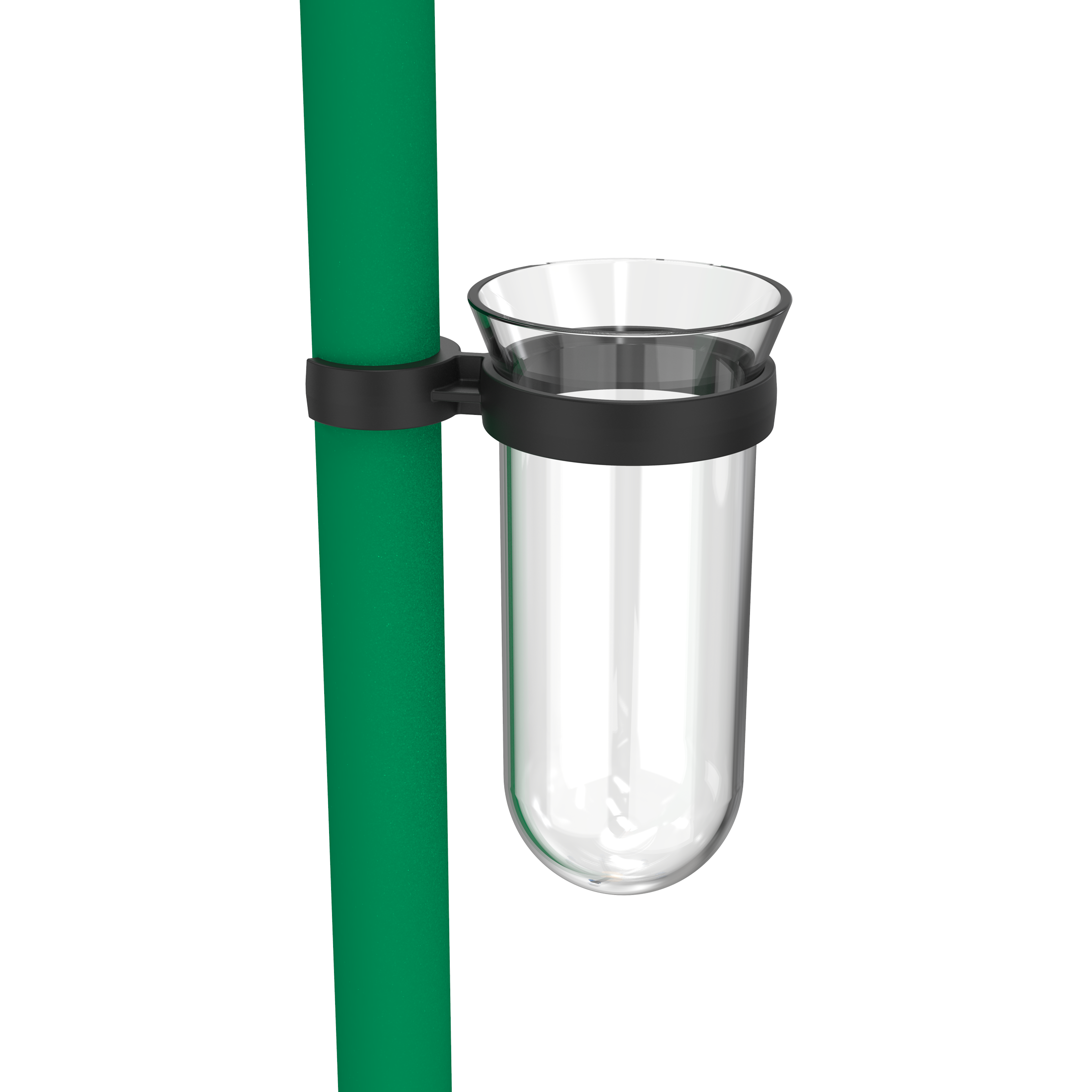

| Drip vessel sterilizable | Yes |
| Total load capacity (kg) | 8 |
| Load capacity per system (kg) | 8 |
| Load capacity per hook (kg) | 2 |
Packaging dimensions
| Packaging unit: Pair |
| Width Box1 | 0,19 m |
| Height Box1 | 0,10 m |
| Length Box1 | 1,19 m |
| Weight Box1 | 6,50 kg |
| Packaging unit: Unit |
| Width Box1 | 0,19 m |
| Height Box1 | 0,10 m |
| Length Box1 | 1,19 m |
| Weight Box1 | 3,50 kg |
