Children Infusion stand "Rainbow - yellow"
Product highlights
Shipping optimized packaging
up to 50 pieces on one pallet
Set-Up-Time
2 - 3 minutes
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- child-fairly design stimulates the recovery process and provides a friendly atmosphere
- All plastic parts are lightfast
- The integrated pull-out limiter prevents the adjustable tubes from separating

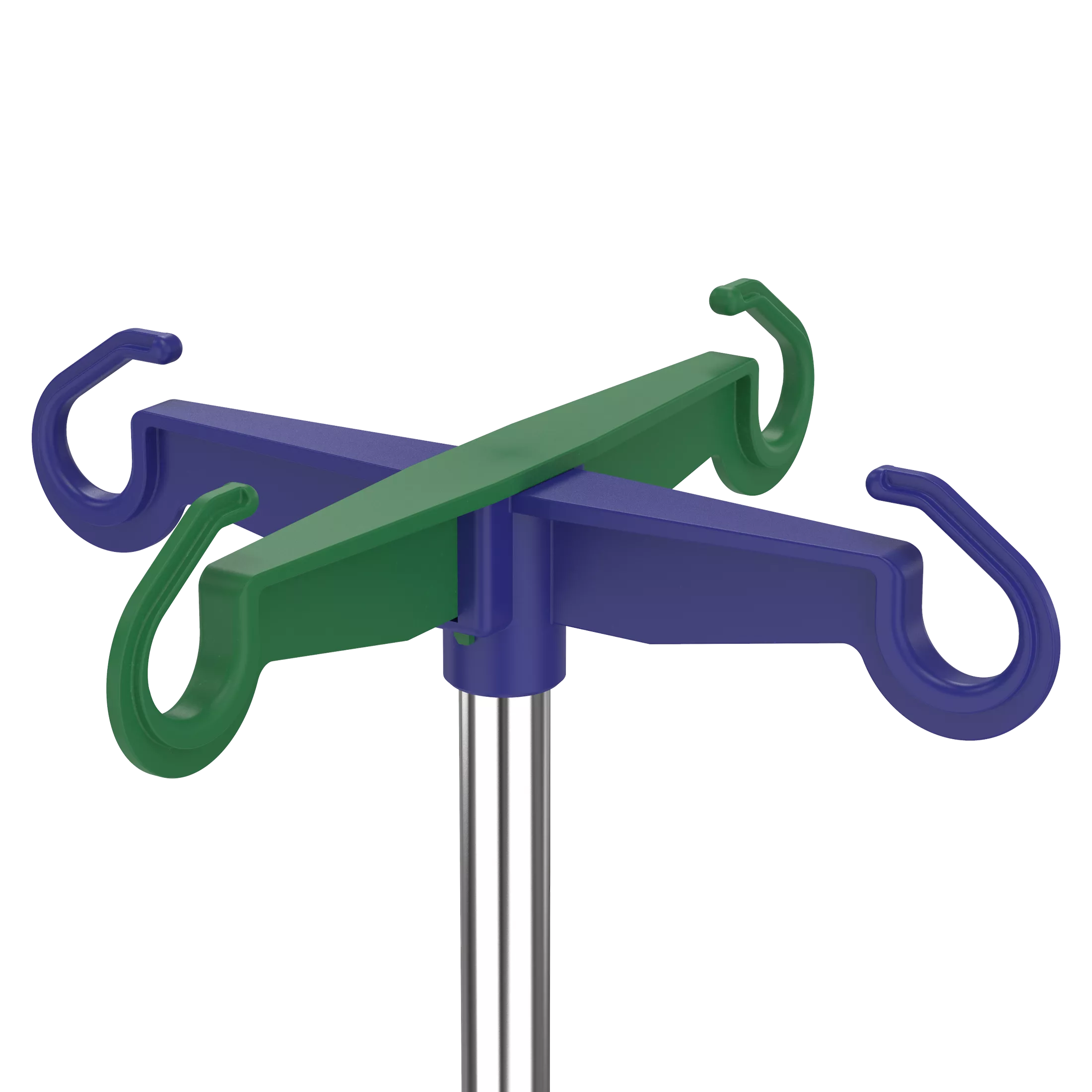

- Safety bottle cross according to DIN ISO 15375
- a sealing cap prevents the IV-pole from hygienical senstive liquids
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
- very easy and fast assembly through a plug in and out system with only 1 screw connection

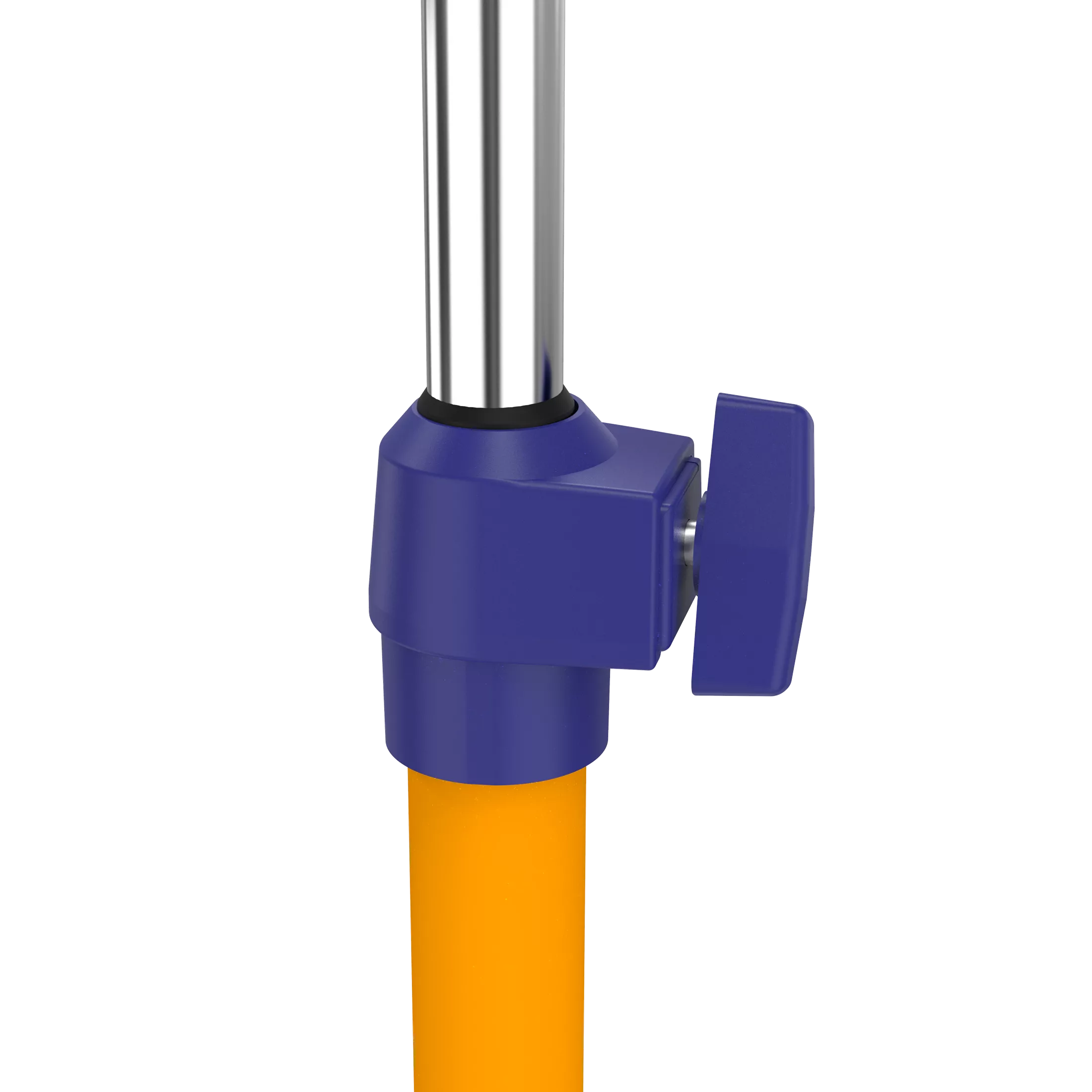

- comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element
Children Infusion stand "Rainbow - yellow"
with airplane wheels| Product number: | I-HA4130 |
| Mounting of medical devices: | prohibited |
| Field of application: | Pediatric |
| Material: | Aluminium/ Plastic |
| Colour of plastic parts: | Yellow, blue, green |
| Bottle Holder: | Plastic |
| Number of hooks: | 4 |
| Arrangement of the hooks: | 90° to each other |
| Maximum length/height: | 2.100 mm |
| Minimum length/height: | 1.275 mm |
| Inner tube diameter: | Ø 18 mm |
| Outer tube diameter: | Ø 25 mm |
| Length of outer tube: | 1.000 mm |
| Base diameter: | Ø 660 mm |

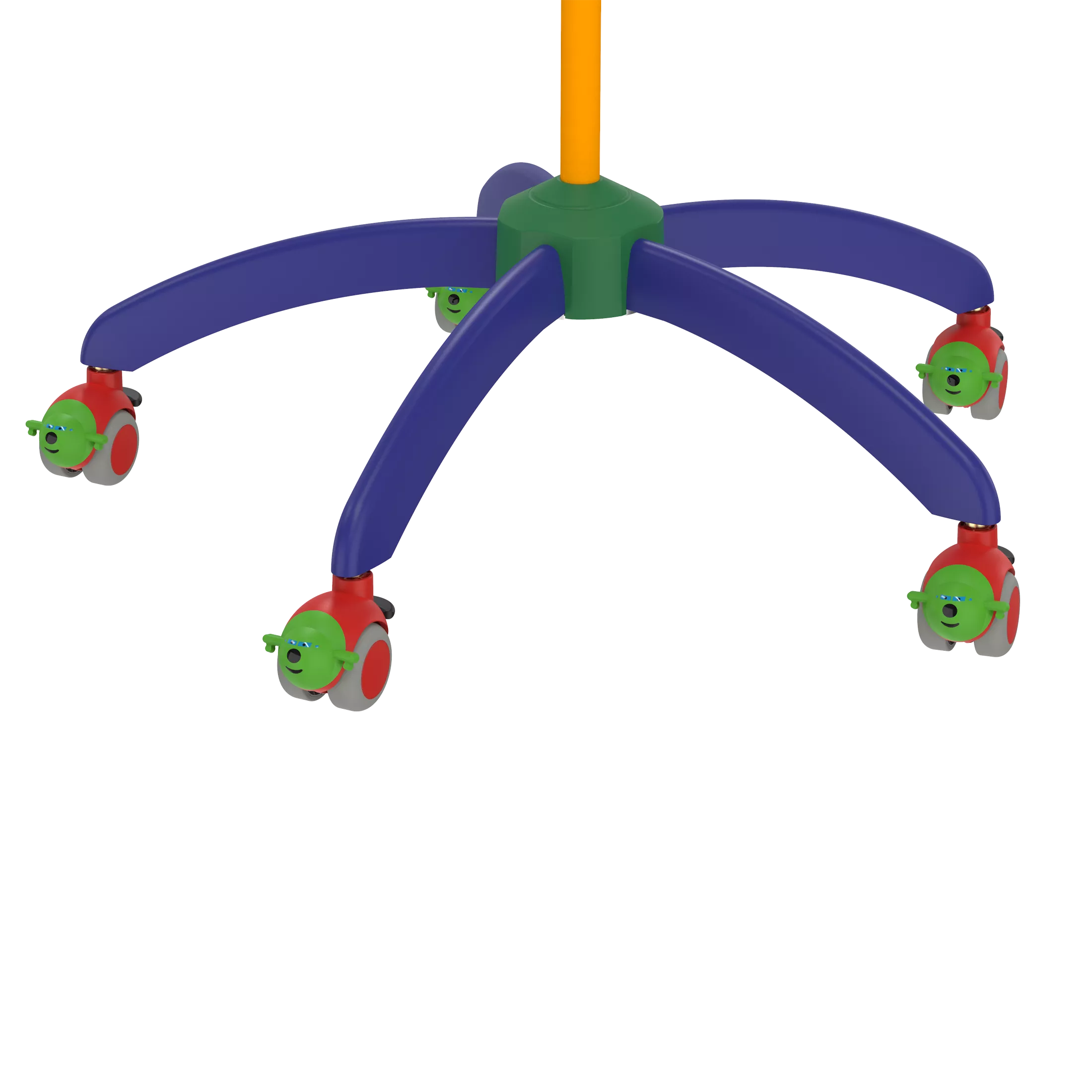

| Castors: | Twin castors - airplane design |
| Castor diameter: | Ø 50 mm |
| Number of castors: | 5 with brakes, without elect. conductivity |

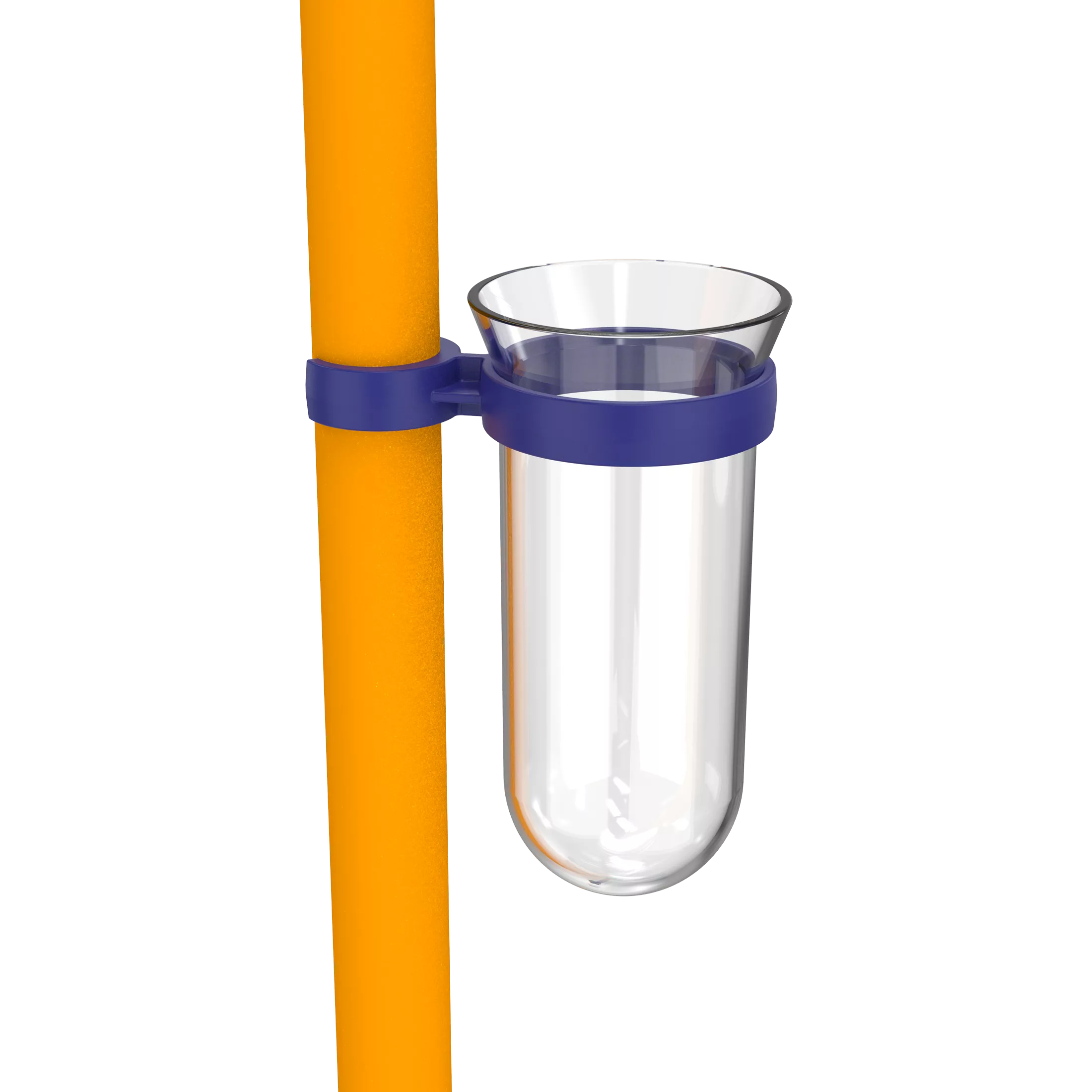

| Drip vessel sterilizable: | Yes |
| Total load capacity (kg): | 8 |
| Load capacity per system (kg): | 8 |
| Load capacity per hook (kg): | 2 |
Packaging dimensions
| Packaging unit: Pair |
| Width Box1 | 0,19 m |
| Height Box1 | 0,10 m |
| Length Box1 | 1,19 m |
| Weight Box1 | 6,50 kg |
| Packaging unit: Unit |
| Width Box1 | 0,19 m |
| Height Box1 | 0,10 m |
| Length Box1 | 1,19 m |
| Weight Box1 | 3,50 kg |
