Product highlights
Best hygienic properties
stainless steel (1.4301)
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- Mobile and flexible application possibilities
- Compact packaging allows for low-cost shipping
- The base legs are sealed with plastic plugs (no risk of injury)
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- electrically conductive
- an integrated base-weights facilitates a safer attachment of various pumps and other medical equipment

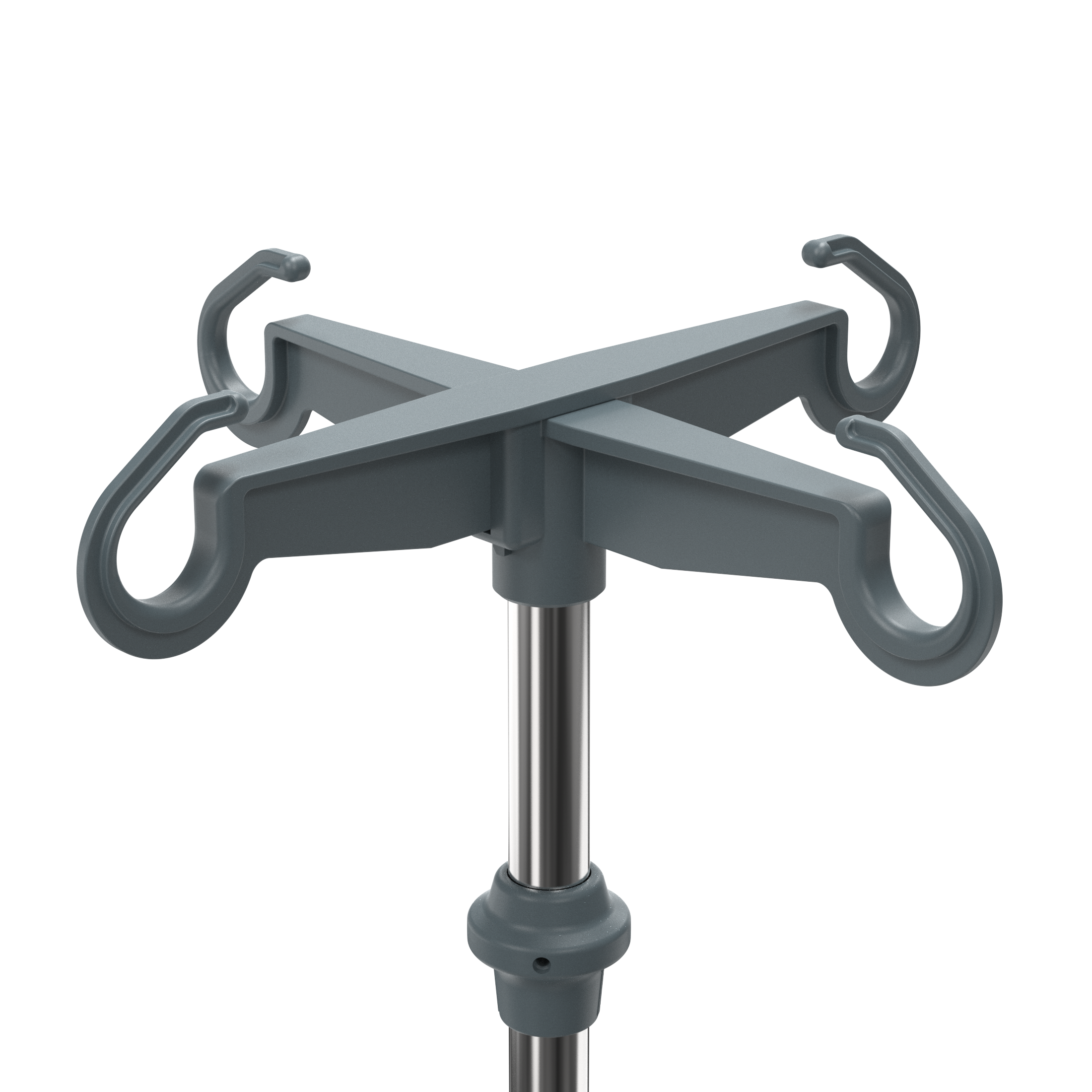

- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out

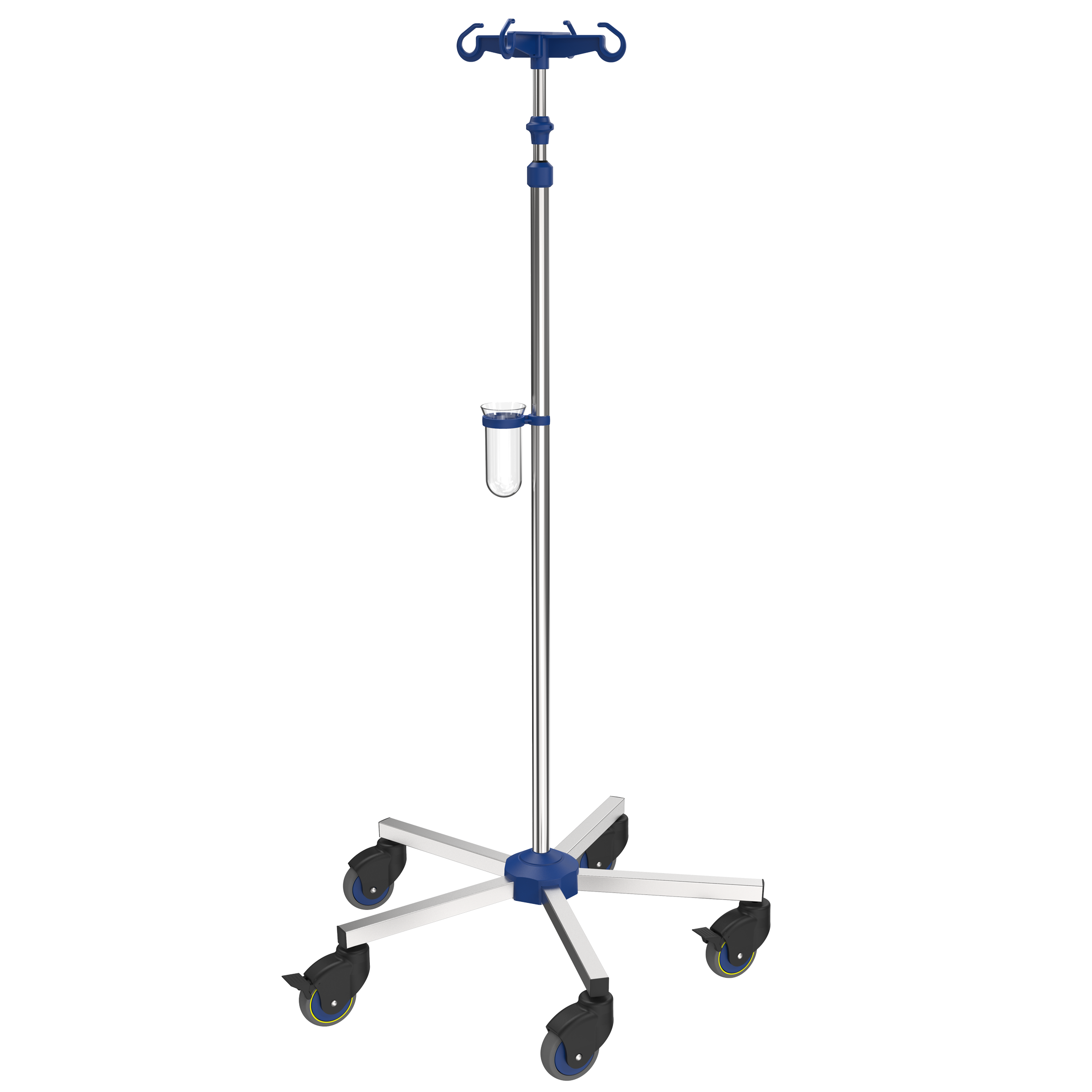

I.V. stand / Drip stand
Material: stainless steel| Product number: | I-I12211 |
| Field of application: | Intensive Care |
| Material: | Stainless steel |
| Colour of plastic parts: | Blue-grey/ Black |
| Bottle Holder: | Plastic |
| Number of hooks: | 4 |
| Arrangement of the hooks: | 90° to each other |
| Type of height adjustment: | One-hand height adjustment |
| Maximum length/height: | 2.350 mm |
| Minimum length/height: | 1.500 mm |
| Inner tube diameter: | Ø 18 mm |
| Outer tube diameter: | Ø 25 mm |
| Length of outer tube: | 1.200 mm |
| Base leg profile: | 45 x 25 mm |
| Base weight: | Weighted |
| Base diameter: | Ø 680 mm |
| Castors: | Mono castors |
| Castor diameter: | Ø 75 mm |
| Number of castors: | 5 with brakes and elect. conductivity |
| Drip vessel sterilizable: | Yes |
| Total load capacity (kg): | 21 |
| Load capacity per system (kg): | 8 |
| Load capacity per hook (kg): | 2 |
Packaging dimensions
| Packaging unit: Unit |
| Width Box1 | 0,22 m |
| Height Box1 | 0,12 m |
| Length Box1 | 1,47 m |
| Weight Box1 | 9,10 kg |
