Product highlights
Best hygienic properties
stainless steel (1.4301)
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- Mobile and flexible application possibilities
- All plastic parts are lightfast
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- The integrated pull-out limiter prevents the adjustable tubes from separating
- Safety bottle cross according to DIN ISO 15375
- a sealing cap prevents the IV-pole from hygienical senstive liquids
- Compact packaging allows for low-cost shipping
- The base legs are sealed with plastic plugs (no risk of injury)
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
- comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element
- The outer tube offers enough space to attach various devices at a user-friendly operating height
- longer outer tube 1.200 mm enables the attachment of pumps in a customer-friendly height display

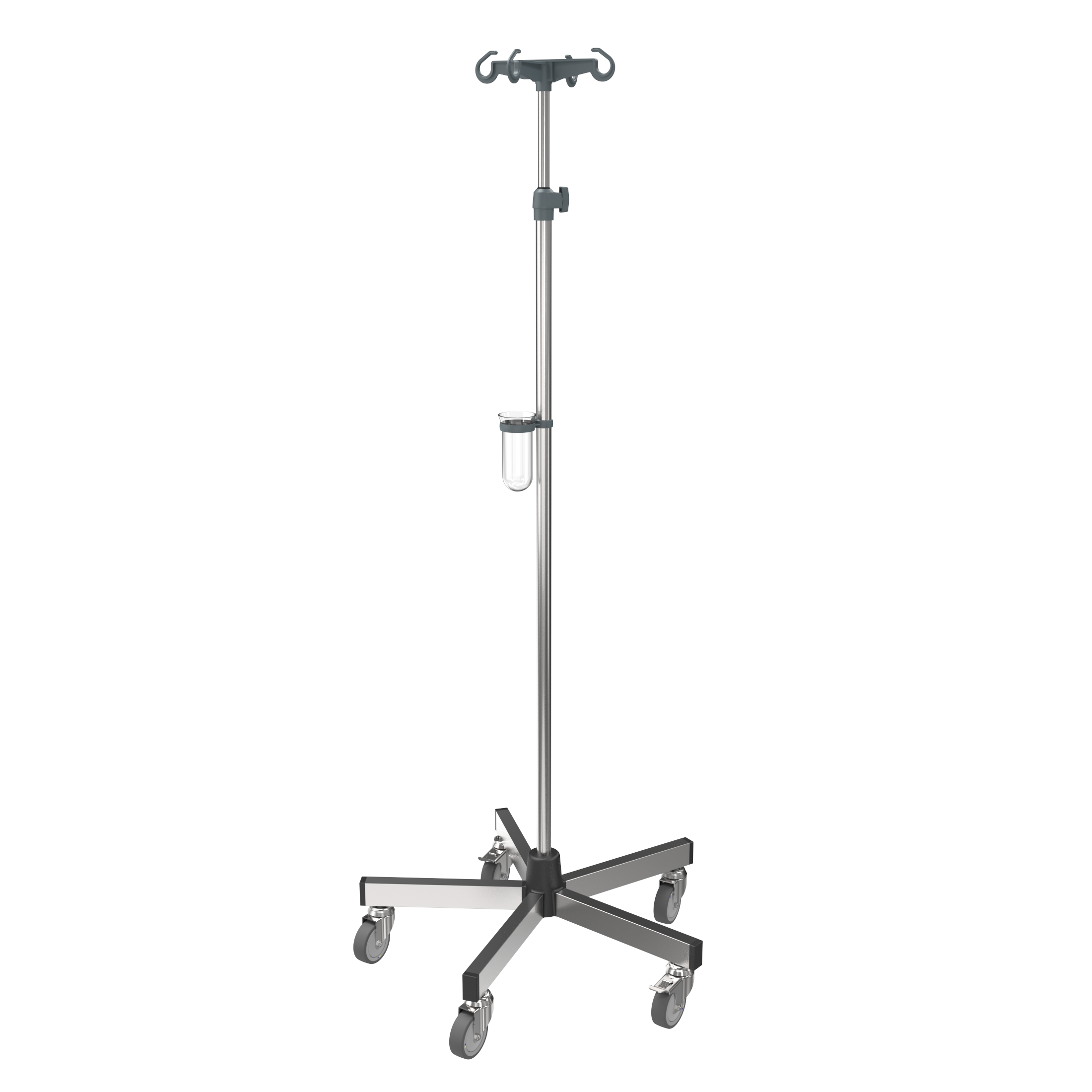

I.V. stand / Drip stand
Material: stainless steelProduct number: | I-I13123 |
Field of application: | Intensive Care |
Material: | Stainless steel |
Colour of plastic parts: | Blue |
Bottle Holder: | Stainless steel to plug in, bottle holder |
Number of hooks: | 4 |
Arrangement of the hooks: | 90° to each other |
Type of height adjustment: | Screw height adjustment |
Maximum length/height: | 2.450 mm |
Minimum length/height: | 1.500 mm |
Inner tube diameter: | Ø 18 mm |
Outer tube diameter: | Ø 25 mm |
Length of outer tube: | 1.200 mm |
Base leg profile: | 45 x 25 mm |
Base weight: | Unweighted |
Base diameter: | Ø 680 mm |
Castors: | Apparatus castors |
Castor diameter: | Ø 75 mm |
Number of castors: | 5; 2 with brakes and elect. conductivity |
Drip vessel sterilizable: | Yes |
Total load capacity (kg): | 13 |
Load capacity per system (kg): | 8 |
Load capacity per hook (kg): | 2 |
Packaging dimensions
Packaging unit: Unit |
Width Box1 | 0,22 m |
Height Box1 | 0,12 m |
Length Box1 | 1,47 m |
Weight Box1 | 5,30 kg |
