Product highlights
Best hygienic properties
stainless steel (1.4301)
Seamless base construction
Electro-polished surface
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Effective infusion care by securely hanging infusion bottles and bags
- completely stainless - enhanced hygiene and disinfection conditions through smooth, electropolished surfaces
- All plastic parts are lightfast
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- The integrated pull-out limiter prevents the adjustable tubes from separating
- Safety bottle cross according to DIN ISO 15375
- Welded stainless steel castor pins reduce the risk of rusting and improve the mechanical and hygienic conditions
- great running characteristic through high value 80 mm Mono castors
- a sealing cap prevents the IV-pole from hygienical senstive liquids
- The base legs are sealed with plastic plugs (no risk of injury)
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- No risk of injury thanks to the rounded shape of the bottle hooks
- The geometry of the hooks prevents the infusion bottle from falling out
- comfortable height adjustment through a screw-height adjustment with an integrated, surface-gently mold clamping element

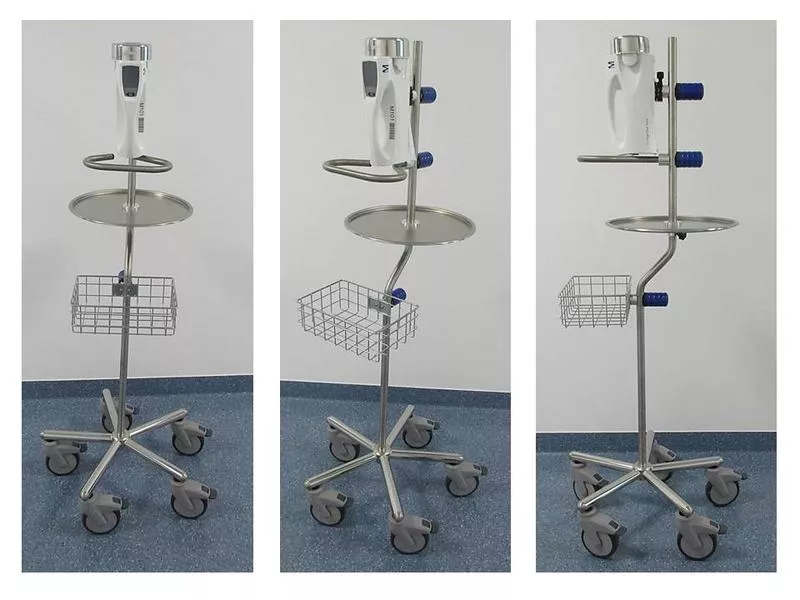

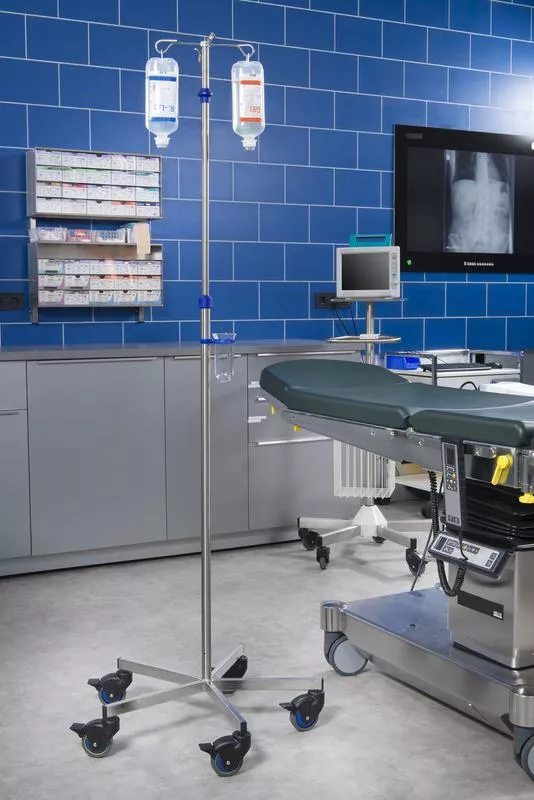

IV-stand / Drip stand
screw height adjustmentProduct number: | I-O12122 |
Field of application: | OR (initiation / recovery room) |
Material: | Stainless steel |
Colour of plastic parts: | Blue |
Bottle Holder: | Stainless steel to screw in, bottle holder |
Number of hooks: | 4 |
Arrangement of the hooks: | 90° to each other |
Type of height adjustment: | Screw height adjustment |
Maximum length/height: | 2.150 mm |
Minimum length/height: | 1.350 mm |
Inner tube diameter: | Ø 18 mm |
Outer tube diameter: | Ø 25 mm |
Length of outer tube: | 1.000 mm |
Base leg profile: | 30 x 15 mm |
Base weight: | Unweighted |
Base diameter: | Ø 635 mm |
Castors: | Mono castors |
Castor diameter: | Ø 80 mm |
Number of castors: | 5 with brakes and elect. conductivity |
Drip vessel sterilizable: | Yes |
Total load capacity (kg): | 9.5 |
Load capacity per system (kg): | 8 |
Load capacity per hook (kg): | 2 |
Packaging dimensions
Packaging unit: Unit |
Width Box1 | 0,62 m |
Height Box1 | 0,20 m |
Length Box1 | 0,59 m |
Weight Box1 | 2,30 kg |
Width Box2 | 0,19 m |
Height Box2 | 0,10 m |
Length Box2 | 1,19 m |
Weight Box2 | 2,20 kg |
