Product highlights

Advantages

light intensity, non-reflective illumination of the work field to optimize procedures during treatment and to support the examining doctor
homogeneous light field through an optimized light steering - excellent illumination depth, ideal colour rendering and colour temperature

Technology

All plastic parts are lightfast
central light unit and high gloss metal facetted reflector generate a high level shadowless lighting
light source with overheat protection
high value colour rendering index and optimised colour temperature
sturdy articulated arms made from metall with high grade structured powder coating with highest yellowing resistance
multiple mixture of light

Economy

Safety

Application

lighthead can easily be rotated and pivoted
true-to-position, low-friction cardan joint allows a comfortable positioning of the lamp
ergonomic weight balancing provides optimal mobility at highest stability
excellent hygienic characteristics through seamlessly covered design

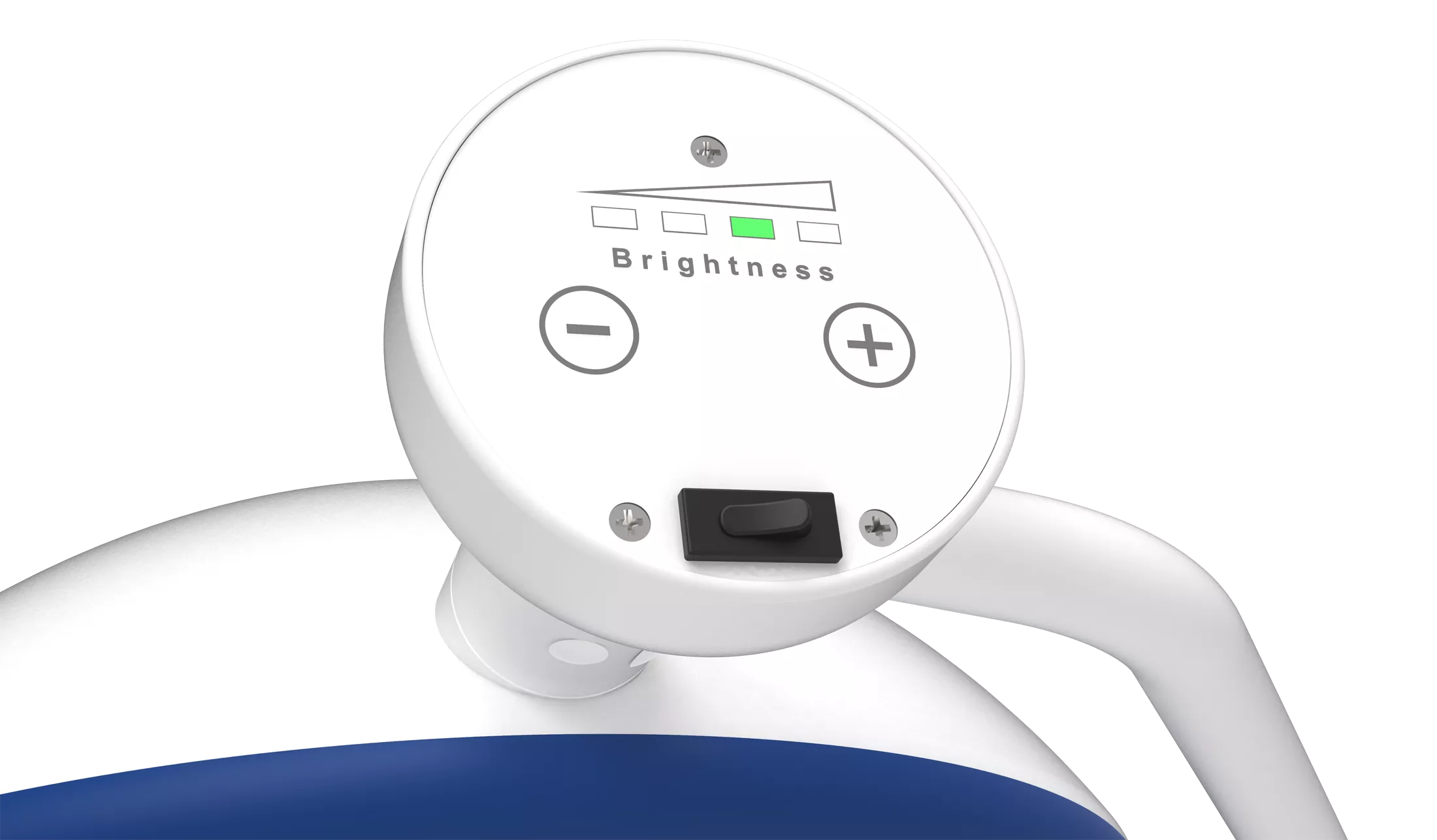

adjustable light intensity by four step dimming function

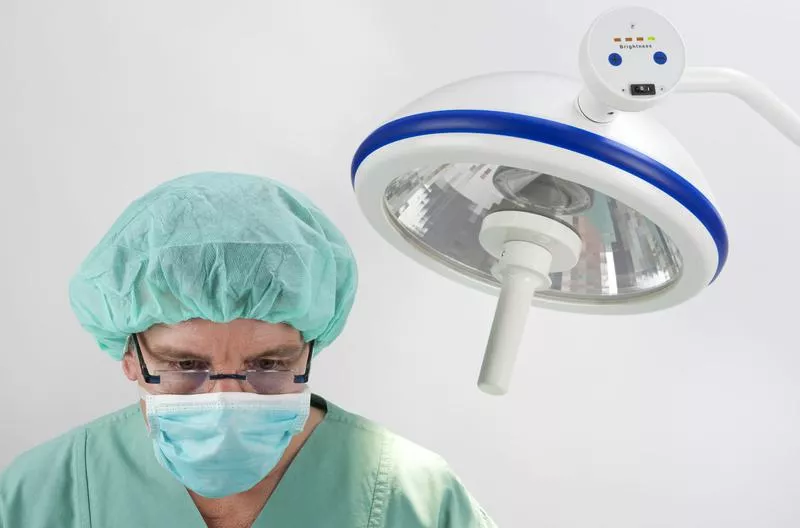

LED ceiling-mounted examination light series 5

for room-height 3,0 m

Product number:

L530067A

For attachement to :	Ceiling
Room height:	3,000
Colour of lamp:	White
Light source:	24 V / 27 W
Light output:	~ 80,000 lux / 1,000 mm
Luminous flux (lm):	840 lm
Light field diameter D10:	approx. 160 at 1,000
Light colour:	approx. 4,500 K
Colour rendering index:	Type 94
Life expectancy:	> 50,000 h (light source)
Protection class:	IP 20
Safety class:	I
Electrical mains:	AC 120 - 240 V, 50 - 60 Hz
Total power output:	35 W
Red-colouring index R9:	> 97
Skin rendering index R13:	> 98
Luminous efficiency:	31 lm / W
Diming levels:	50 % / 65 % / 85 %
Electrical rating after:	DIN VDE 0750 T1
Height adjustment:	approx. 1,000
Swivel radius:	approx. 1,750
Handle:	sterilisable
Installation on:	ceiling
Operating mode:	continuous use
Optional:	Other mounting solutions on request / mounting material and ceiling cover are not included in the scope of delivery.
