Series 1-100 - Wall examination lamp
Product highlights
Optimal illuminance
with dimming function
Touchless
Motion control
- brilliant, non-reflective illumination of the treatment level helps the examining doctor during diagnosis
- extended life time - maximum energy efficiency - minimal maintenance
- full access to the patient thanks to a maximum floor freedom
- high life expectancy of the light source
- low maintenance effort
- protected interior cable management
L140080A

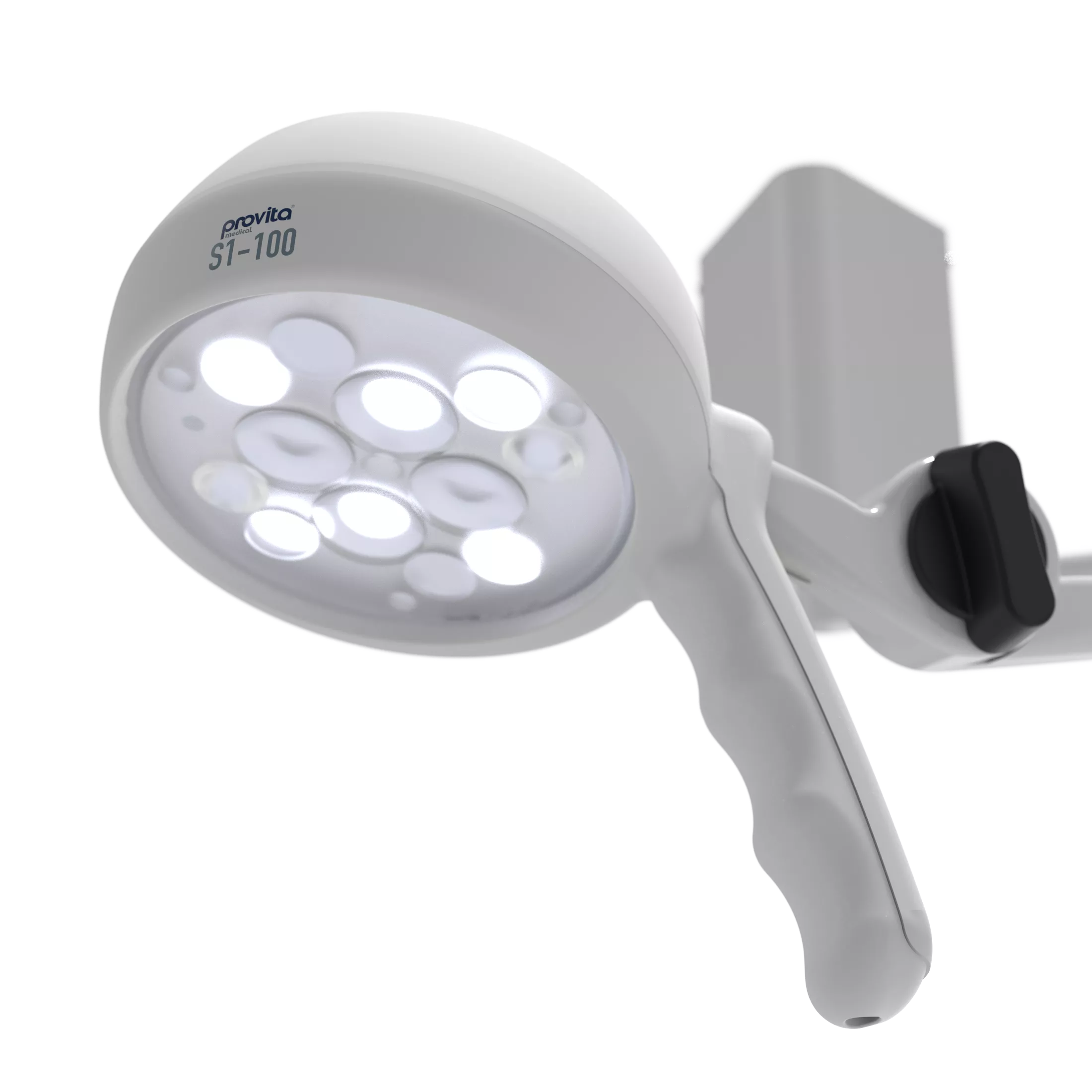

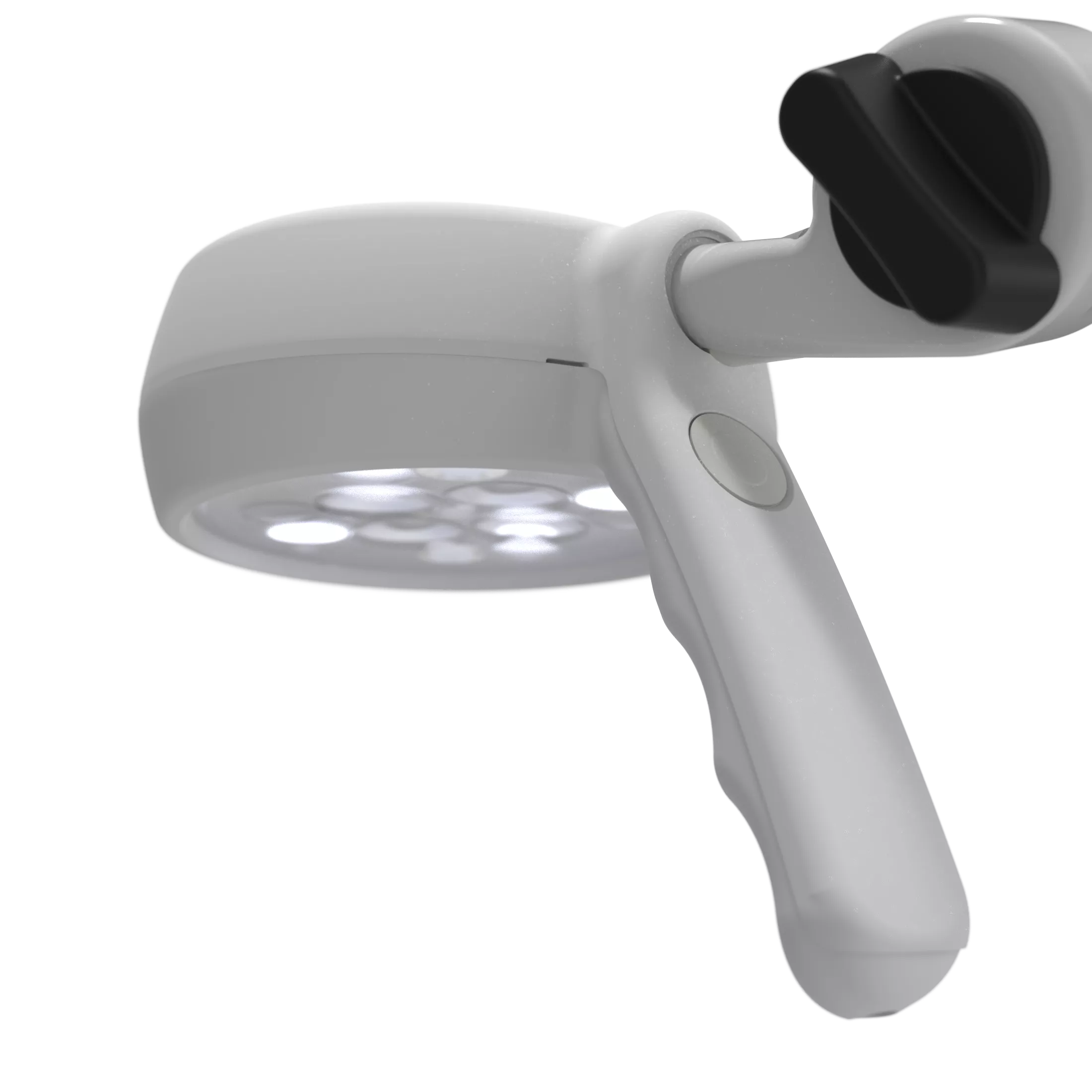

Series 1-100 - Wall examination lamp
Pivotable
| Light module | 8 LEDs |
| For attachement to | Wall |
| Angle of rotation | ~ 330° |
| Colour of lamp | White |
| Light source | LED, 9W |
| Light output | > 90.000 lx / 500 mm; 25.000 lx / 1000 mm |
| Luminous flux (lm) | 550 lm |
| Light field diameter D10 | ~ 114 / 500 mm bei 217 / 1.000 mm |
| Light colour | ~ 4000 ± 200 K |
| Colour rendering index | > Type 90 Ra |
| Life expectancy | > 50,000 h (light source) |
| Electrical mains | 100 - 240 V, 50 - 60 Hz |
| Motion control | Turn on/ off, Dimming |
| Note | Due to measurement and production given data may deviate by approx. -10% to + 20%. |
Packaging dimensions
| Packaging unit: Unit |
| Width Box1 | 0,23 m |
| Height Box1 | 0,21 m |
| Length Box1 | 1,00 m |
| Weight Box1 | 7,50 kg |
