Product highlights
Back-friendly
Health-promoting
- Provita IV-Rods and Stands are employed in numerous of doctor practices as well as the intensive and normal care. In order to satisfy all demands in a hospital as well as daily normal care, Provita offers for every application area, an individual and perfect drip stand solution. Hereby also contributing with an essential and extensive accessory program.
- Back-friendly handling and height adjustment thanks to electrical drive and comfortable foot switch
- Mobile use through a long battery life
- No sinking during power cut
- All plastic parts are lightfast
- Stable base plate made of galvanized steel (layer thickness 10 µm)
- Stainless steel tubes according to DIN EN 10217-7
- Material ultrasonic and eddy current tested (according to EN 10246-9/3)
- The integrated pull-out limiter prevents the adjustable tubes from separating
- The height is adjusted using a battery-operated electric motor with self-locking spindle
- Foot switch system according to EN 60601-1
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- High security through turn safety pole construction
- No lowering in case of power failure
- No risk of tripping
- The motor is protected by a safety housing

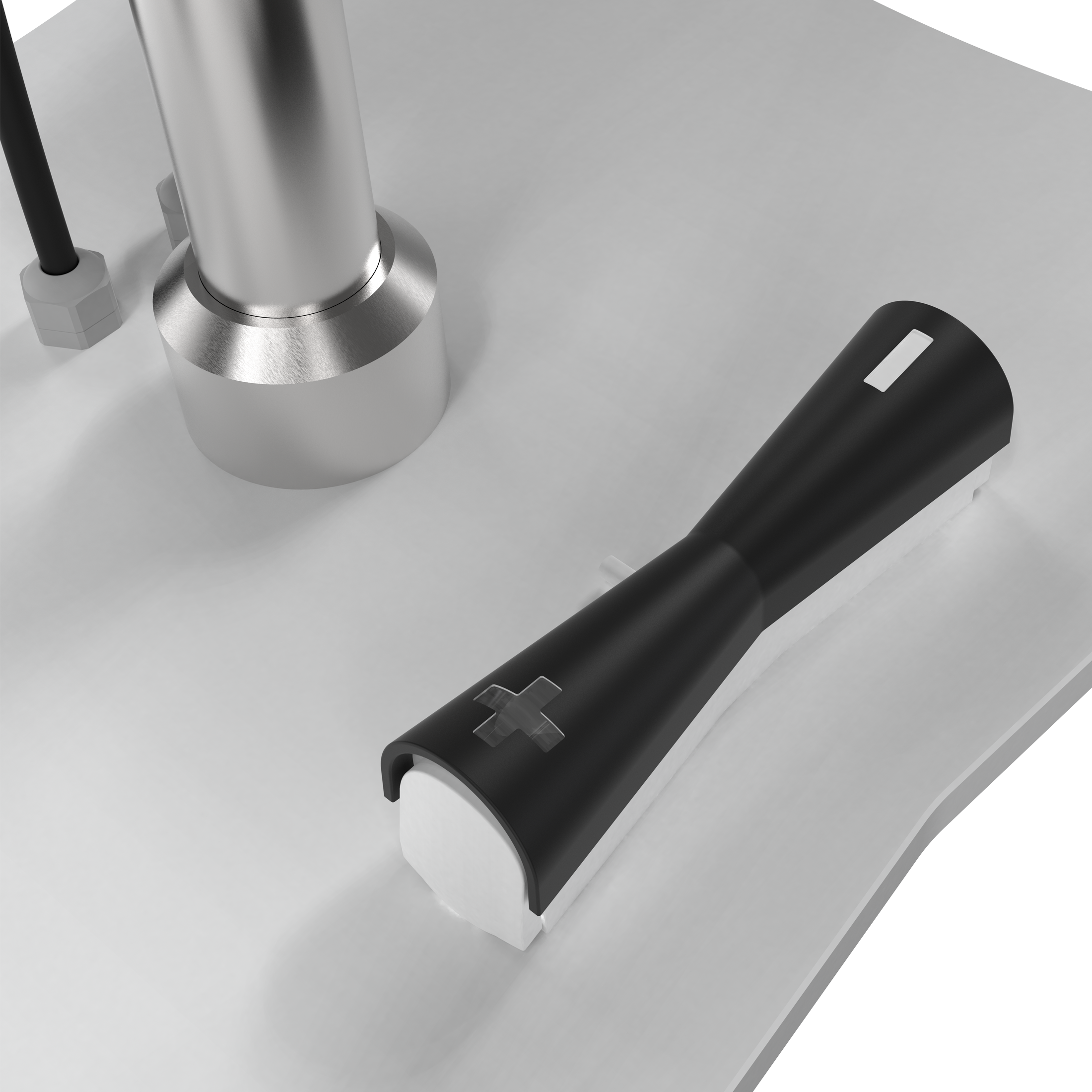

- Convenient height adjustment using a foot switch on the footplate
- Generous cut-out allows for easy operation of the footswitch
- Long battery life allows use in different places
- Easy to move thanks to the extended push handle with large grip surface
- Enables back-friendly setting down of rinsing solutions
Urology Lifter
with electrical height adjustmentProduct number: | I-U02237 |
Field of application: | Urology |
Material: | Stainless steel |
Protection class: | IP 20 |
Safety class: | II |
Number of hooks: | 3 |
Arrangement of the hooks: | 120° to each other |
Type of height adjustment: | Electrical by foot switch |
Maximum length/height: | 2.650 mm |
Minimum length/height: | 1.500 mm |
Operation time: | appr. 22 |
Inner tube diameter: | Ø 25 mm |
Center tube (Ø in mm): | 38 (Ø in mm) |
Base diameter: | 550 x 550 mm |

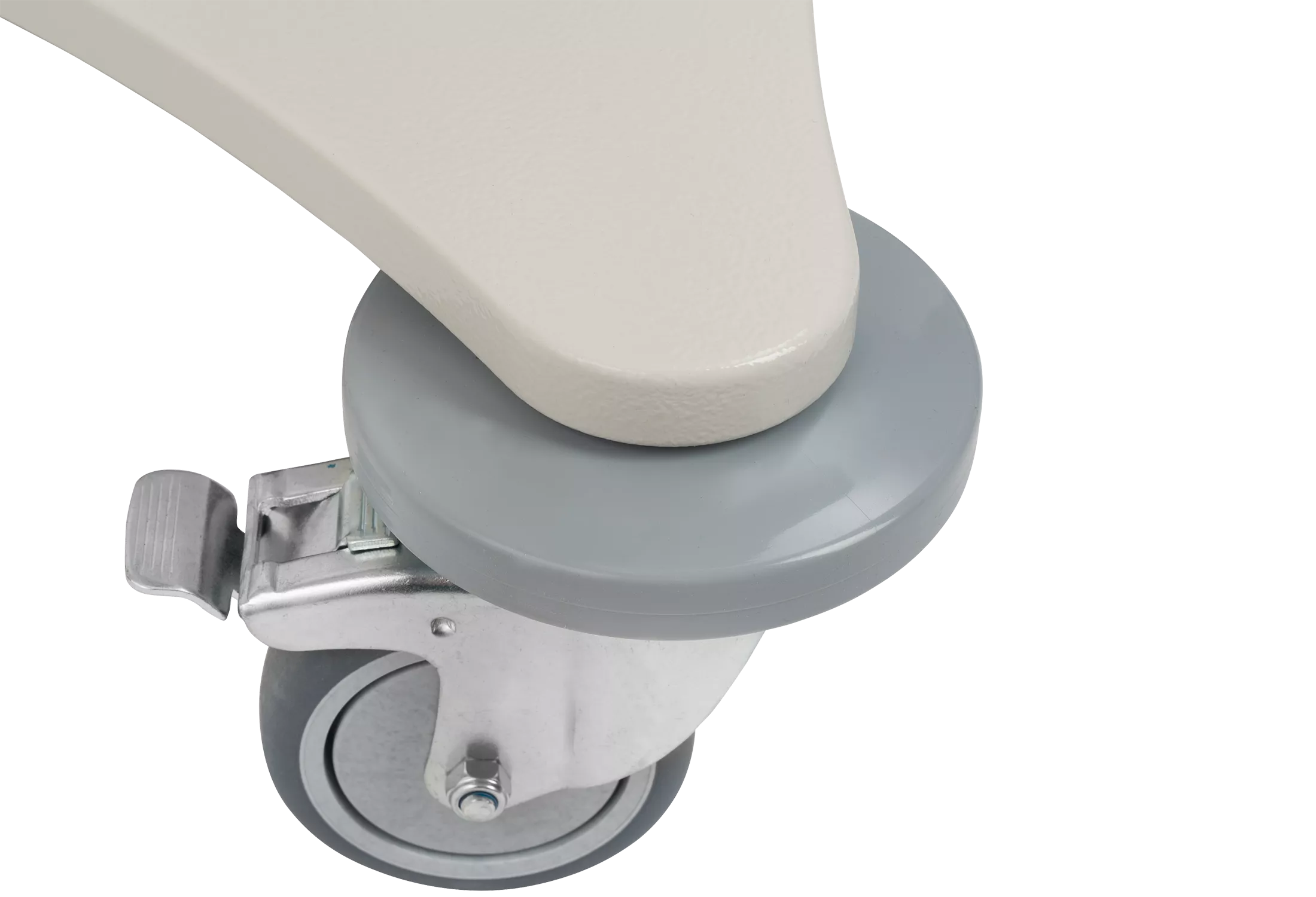

Castors: | Stainless steel apparatus castors |
Castor diameter: | Ø 75 mm |
Number of castors: | 4 with brakes and elect. conductivity |
Wall charger included: | Yes |
Total load capacity (kg): | 30 |
Load capacity per system (kg): | 30 |
Load capacity per hook (kg): | 12.5 |
Packaging dimensions
Packaging unit: Unit |
Width Box1 | 0,60 m |
Height Box1 | 1,68 m |
Length Box1 | 0,80 m |
Weight Box1 | 48,00 kg |
